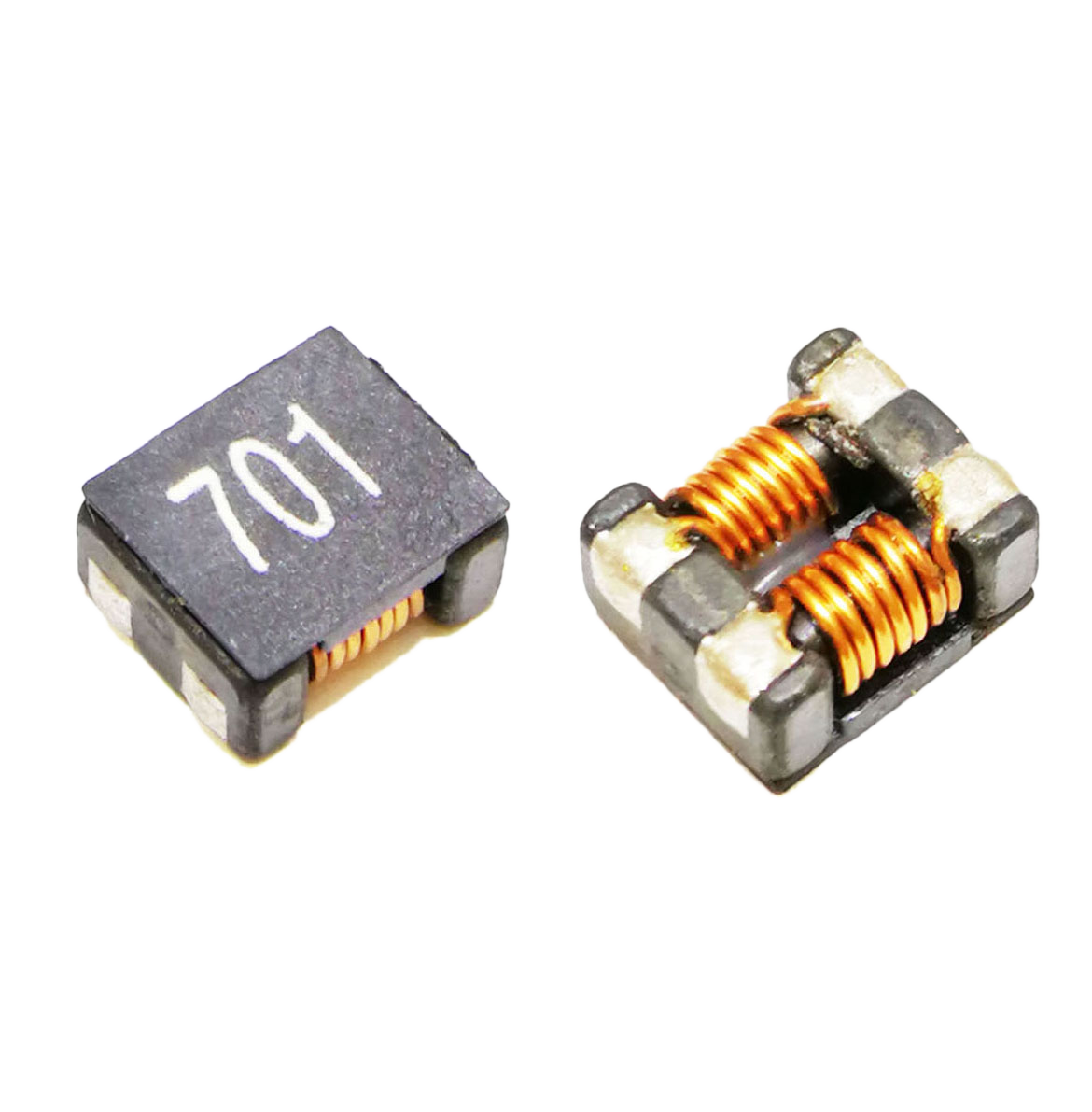

●特征  FEATURES

适用于大电流应用的芯片共模滤波器。 对高频信号共模噪声有良好的抑制作用。 与高密度便携式设备兼容，由于高度降低，这些设备可以被 做得更小更轻。 良好的焊接性能。 工作温度范围-40°C 至+125°C

Chip common mode filter for large current  applications. Prevention of common mode noise at high frequency. Compatible with high-density portable devices, which  are always being made smaller and lighter, because  the height has beenreduced. Excellent solderability. Operating temperature range -40℃ to +125℃

●用途  Applications

LED 灯、电视游戏机、显示器等。 各种电子设备的电源线噪声对策。

LED Light,TV game,Monitor,etc. Power line noise countermeasure for various  electronic equipment.

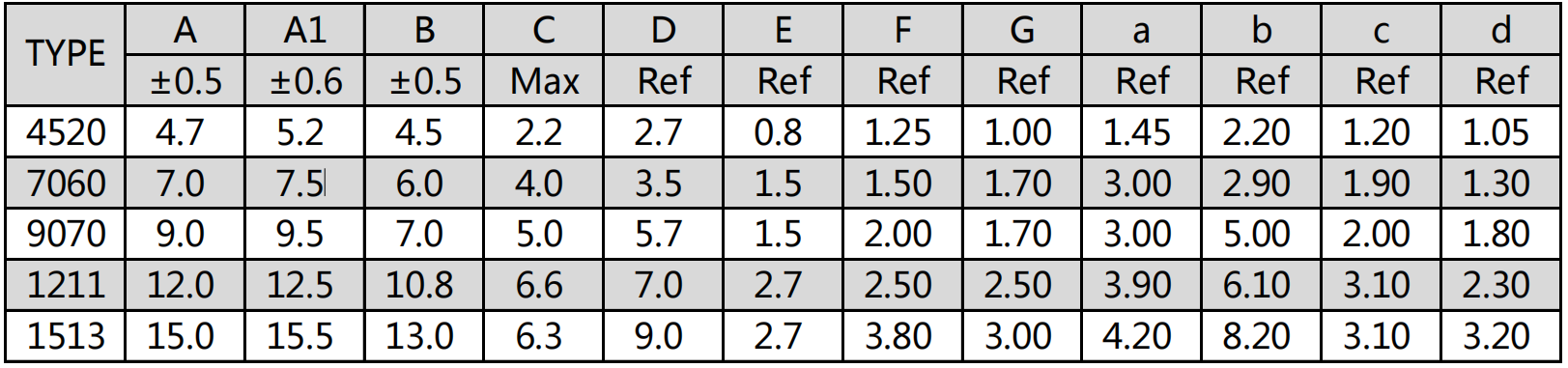

●结构及尺寸 Structure And Dimension

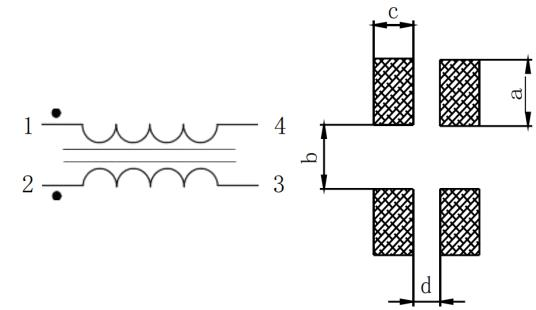

Electrical Schematic and PAD Layout

Unit：mm
